Die Lifter
Features:-

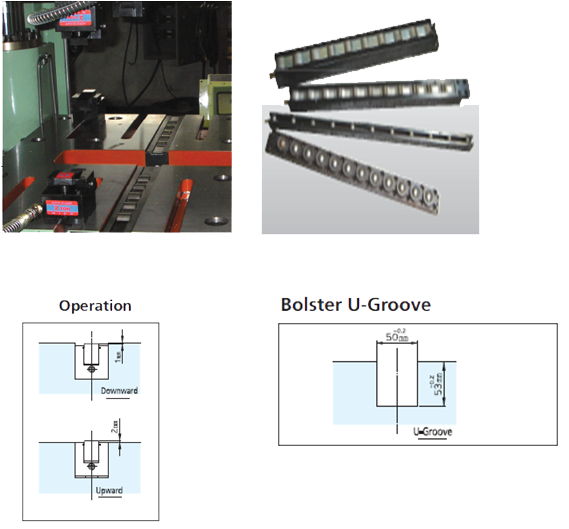

A mould can be moved on a rooler by the forece less than 1/100 of the mould load. The scrab protection cover is attached around a roller. The protection bushing with a specially treated surface protects the bearing in a roller. An integral bar has a remarkable durability, and allows and easy maintenance. A hydraulic cylinder moves upward by hydraulic and downward by self-weight A roller attached to a bar rises about 2mm from surfaces of a bolster and a mould moves upwards as shown in below attached photo.
| Type | LENGTH(mm) | CAPACITY(kg) | Applicablity |
| DL28 | 300~1000 | '615~1230 | Bolstrer U-Groove |
| DL50 | 300~1300 | 940~3290 | Bolstrer U-Groove |
| DL70 | 500~1300 | '1740~4065 | Bolstrer U-Groove |
| BL SPRING | 350~1850 | 225~2520 | Bolstrer T or U-Groove |
